1-4C GJXFH Drop Cable
View:
- Brand: NVOC
- Type: NV-GJXFH
Introduction
1. Scope of applications
The specifications are suitable for the general requirements of fiber optic telecommunicating and FTTH
application.
Cable description
Construction: coloured optical fibers, 2 parallel Steel strength member,
LSZH Jacket
2. Optical fiber

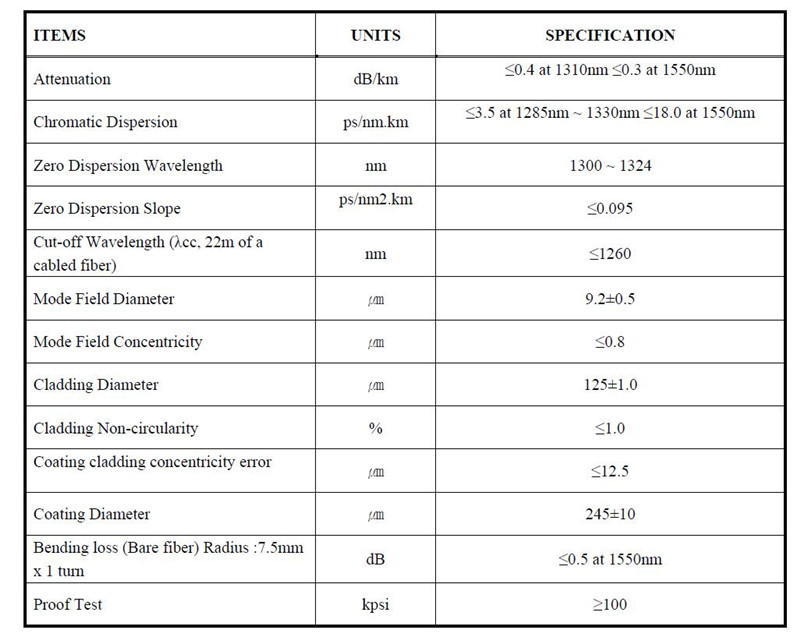

Table 1. Characteristics of the Single Mode Fiber (ref. ITU-T G652D)

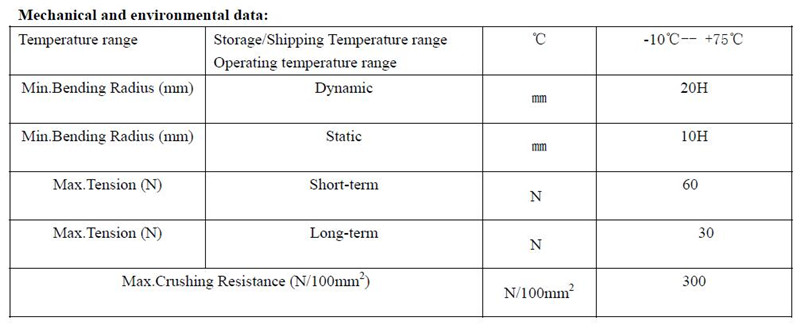

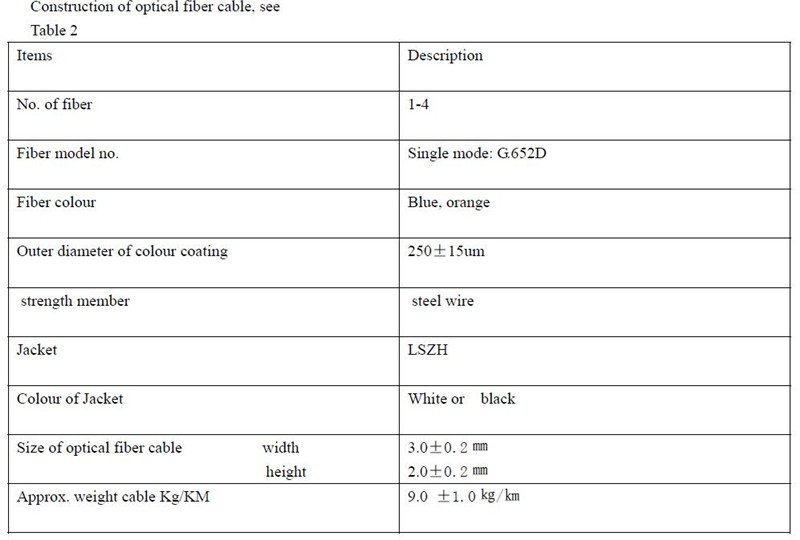

3. Optical fiber cable
4. Packing and markings
Printings on optical fiber cable
White printings are printed at intervals of 1 metre with the following information. Clients can select their own wordings.
1. Metre marks
2. Type of cable and fiber count
3. Name of Manufacturer
4. Year of manufacture
Packing of optical fiber cable
Standard length is 1KM, other lengths subject to negotiation
Wooden reel
Contents of sticker on the wooden reel are as below:
1. Type of cable, fiber count
2. Length
3. Gross weight KGS
4. Reel no.
5. Year of manufacture
