Features

►Supports 9.95Gb/s to 11.1Gb/s bit rates

►Hot-pluggable XFP footprint

►Maximum link length of 10km with SMF

►1310nm Uncooled EML laser and PIN photodiode

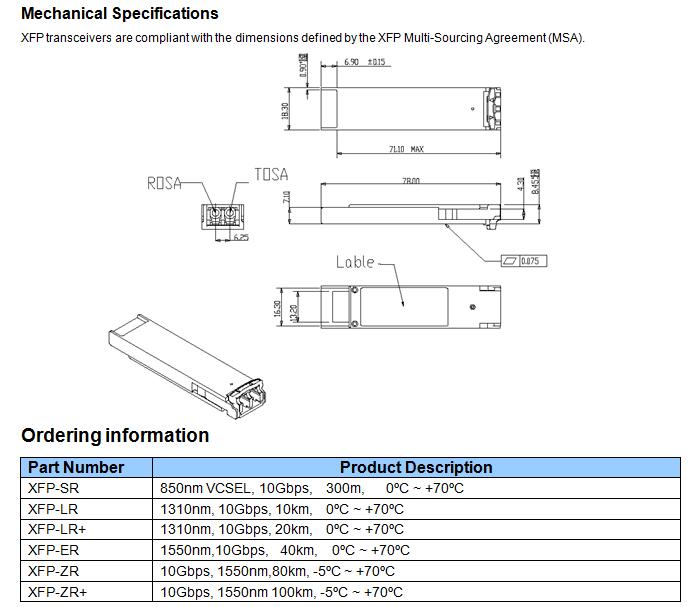

►XFP MSA package with duplex LC connector

►No reference clock required

►+5V, +3.3V power supply

►Power dissipation <2.5W

►Compatible with RoHS

►Built-in digital diagnostic functions

►Temperature range 0°C to 70°C

Applications

►SDH STM I-64.1 at 9.953Gbps

►10GBASE-LR/LW 10G Ethernet

►1200-SM-LL-L 10G Fibre Channel

►10GE over G.709 at 11.09Gbps

►OC192 over FEC at 10.709Gbps

►Other optical links, up to 11.1Gbps

Description

XFP+ is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF.

The transceiver module comprises a transmitter with 1310nm uncooled EML laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

XFP-ER transceiver comply with XFP MSA, and can support diverse applications for SDH/Sonet equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications. The high performance cooled 1550nm cooled EML transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 40km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

 Package
