32G SR Module

  View:
  • Brand:    NVOC
  • Type:    NV-32G-SR
  • Order Online
Introduction

Features:

1.UP to 32 Gb/s bit rates

2. Hot-Pluggable

3. Duplex LC connector

4. 850nm VCSEL transmitter, PIN photo-detector

5.Up to 100m on OM4 MMF, 70m on OM3 MMF

6. 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

7.Cost effective SFP28 solution, enables higher port densities and greater bandwidth

8. Power Supply :+3.3V

9. Low Power consumption<1.2W

10. Operating case temperature Range:-20~ 75°C

11. RoHS compliant

Applications:

1. 32GE SR

2. ECPRI & CPRI

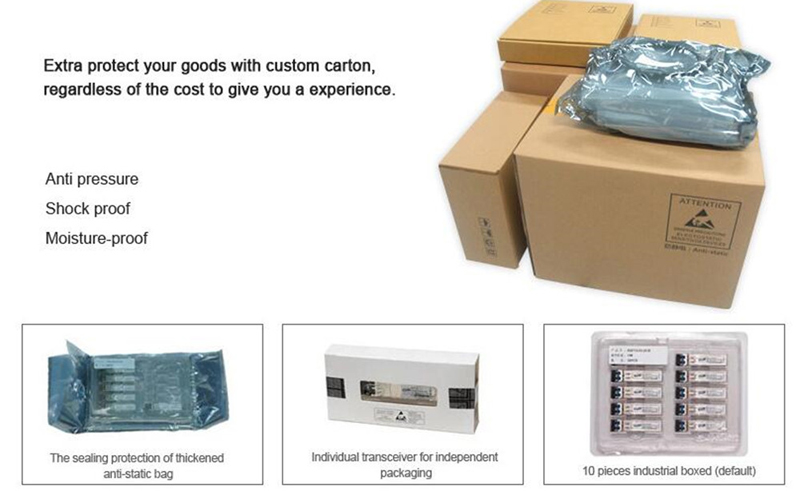

Package:

Description:

32G SR is a very compact optical transceiver module converts32 Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 32GBASE-SR standard. The SFP28 SR module electrical interface is compliant to SFI electrical specifications. The VCSEL transmitter and PIN receiver provide superior performance for Ethernet applications at up to 100m links on  OM4 MMF.

The SFP28 Module compliant with SFF-8431, SFF-8432 and IEE802.3by 32GBASE-SR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
