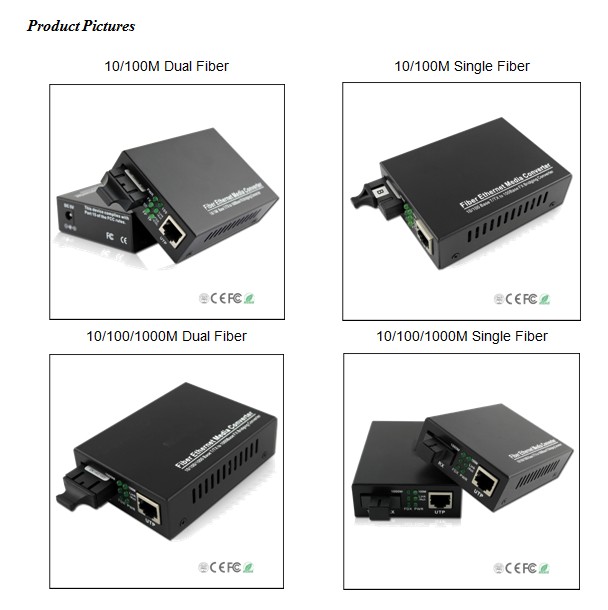

10/100/1000M 1RJ45 Port Single Mode Duplex Fiber Optic Media Convertor

   Main features

1.        In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 1000 Base-TX/FX standard.

2.        Support 1k MAC address.

3.        Power and link LED indicators

4.        Back pressure flow control for full duplex IEEE 802.3X and half duplex.

5.        Automatic identification of MDI/MDI-X crosses line.

6.        Support max forwarding packet length 1552/ 1536 bytes option.

7.        Can be rack mounted in 3.5U 14 slots rack

In conformity to safety code of FCC and 15 CLASS A and CE MARK

Technical parameters

1. Standard Protocol: IEEE802.3 10 Base-T standard

  IEEE 802.3u 100Base-TX/FX standard

 IEEE 802.3u 1000Base-TX/FX standard

2. Connector: Two UTPRJ-45connector, one SC/ST connector

3. Operation mode: full duplex mode or half duplex mode

4. Power supply parameter: outside: 5V DC 1A

5. Environmental temperature: 0℃-60 ℃

6. Relative humidity: 5%-90%

8. TP cable: Cat5 UTP cable

9. Transfer fiber:

Multi-mode: 50/125, 62.5/125 or 100/140μm

Single mode: 8.3/125, 8.7/125, 9/125 or 10/125μm

Wavelength & Max Distance
1310nm 20km
1310nm 40km
1310nm 60km
1550nm 80km
1550nm 100km
1550nm 120km

Fiber Connector
SC (Default)
ST
FC

Converter Type
Standalone (Default)
Card Type

Power Supply
External (Default)
Built-in
Converter Type
 Standalone (Default)
Power Supply
 External (Default)
 Wavelength & Max Distance

 TX1310/RX1550nm 25km
 TX1310/RX1550nm 40km
 TX1490/RX1550nm 60km
 TX1490/RX1550nm 80km
 TX1490/RX1550nm 120km

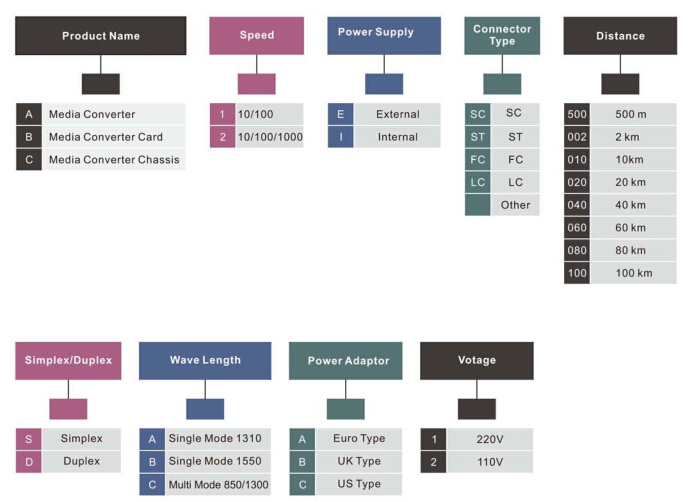

Order information
